特点：(Features)

本机适用于各种机械类 食品类 包装盒的吸塑制作，以及农业类 育秧盘等的吸塑生产

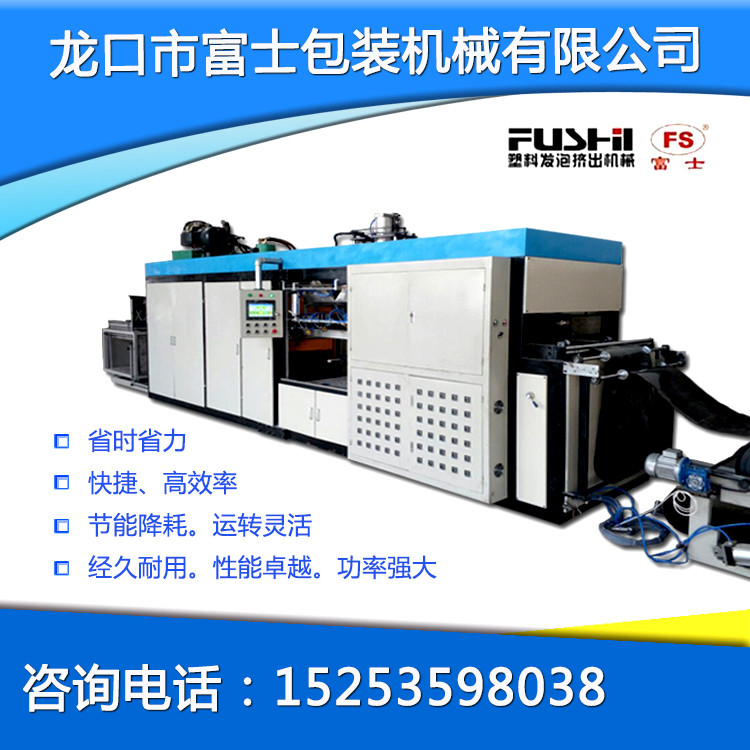

The machine is suitable for all kinds of packing boxes of mechanical and food industrial,as well as plant plates of agricultural by vacuum forming.

1  该机型是一种最新机型，采用PLC编程、触摸屏控制 ，操作简便直观。

This is a kind of new model,it controls by PLC programming touch screen,easy to operate.

2  机器主体采用气动、机械、电器相结合，实现了送料、加热、成型、冷却、脱模、切边、计数等自动化连续工作，最大频率可达4秒一次动作，极大地提高了生产效率。

The machine body adopts combination of pneumatic, mechanical and electrical appliances.Feeding, heating, shaping, cooling，demoulding cutting，cutting etc. automatic and continuous work,the Max. efficiency can reach to 4 seconds/one time.

3  针对育苗盘特别改制的辐射瓦加热设计，每一块瓦温度都可单独调整，即节能又可大大提高产品质量

For seedling dish special restructuring of radiation tile heating design, every piece of radiation tile, temperature can be adjusted separately, saving energy and can greatly improve the quality of products

4  加热箱全封闭设计，使热能不易散发浪费，大幅度节省电能，与其同类机型节约电能50%以上，采用一控一温控系统，设有电子电压调节表控制温度，温控精准。

Heating box with totally enclosed design,it make thermal energy can’t be wasted and can save electric energy drastically,compared with similar type to save electrical energy about 50% above.The temperature is controlled by electronic voltage regulating table,make it accurate.

5  加热箱单独开关控制可左右移动，生产时可以随时调整，以生产出合格产品

The heating box can move right and left with Separate switch.Customer can adjust momentarily during production in order to product acceptable products.

6   成型宽度可在450mm—710mm之间任意调整。调整采用减速电机带动，精准省力。

Forming width can be adjusted by motor,clients can adjust the width between 450mm—710mm arbitrarily.

7   采用伺服电机电动拉片，拉片快速均匀稳定，准确度高。

Pulling the sheet with Servo motor,it is fast,stable and homogeneous with a high accuracy

8  模具气缸缸径加大为150mm，杆径加大为90mm使模具上下的平衡度最佳。

Cylinder diameter of die cylinder increase to 150mm,rod diameter increase to 90mm,making the top and bottom of lower die have a best degree of balance.

9  特有震动脱模可在0—9次之间任意调接，适用于深度大，不易脱模的制品　

Special Vibration demould can adjust between 0-9 times at will,it is a best choice for product which has big depth and is fragile, difficult to demould.

10  两次上模可在脱模时保护产品不变形，不裂缝

Two upper die can protect product from deformation and crevice.

11 上下模均采用电动调节，使操作方便简洁，动作可靠。

Upper and lower die adopts electric drive to adjust,which makes the operation convenient and concise,action reliable

12   高耐磨铝合金导轨，导轨整体水冷，提高产品质量

High wear-resisting aluminium alloy guide, guide overall water cooling, improve the quality of products

13  本机配备有冷风系统及冷水喷雾装置，在模具不带水冷却的情况下可以连续工作，适用于非金属模具生产。

This machine have quenching system and cold water mist device,it can work continuously when the mold without water to cold.It is applicable to non-metallic mold production.

14  本机可根据客户要求增加和改变各种功能。

 We can add or change various functions according to the request of clients .
